Samsung 256GB PM981 M.2 PCIe NVMe Performance OEM SSD (Ελεγκτής Phoenix)

Samsung PM981 is the OEM product derived from Samsung 970 EVO.

This drive features Samsung’s new 64-layer V-NAND and a high-performance controller that delivers up to 3,000 MB/s of sequential read throughput and 270,000 random read IOPS.

Samsung Polaris V2 memory controller was used in the early version, but ARM Phoenix memory controller was used in the later version.

It was popular for a while because of its good value for money.

όνομα προϊόντος	Samsung 256GB PM981 M.2 PCIe NVMe Performance OEM SSD
Κωδικός	MZVLB256HAHQ-00000
Model	MZ-VLB2560
Realeased Year	2017
Κατασκευαστής	Samsung
Χώρα παραγωγής	Κίνα
Πroduct Classification	Internal SSD (Solid State Drive)
Συντελεστής μορφής	Μ.2 (2280)
Διεπαφή	PCIe 3.0 (x4) (32GT / s)
Host Controller Interface	NVMe 1.2
Catacity	256γιγαμπάιτ
Byte per Sector	512Byte
Memory Type	NAND Flash Memory, TLC

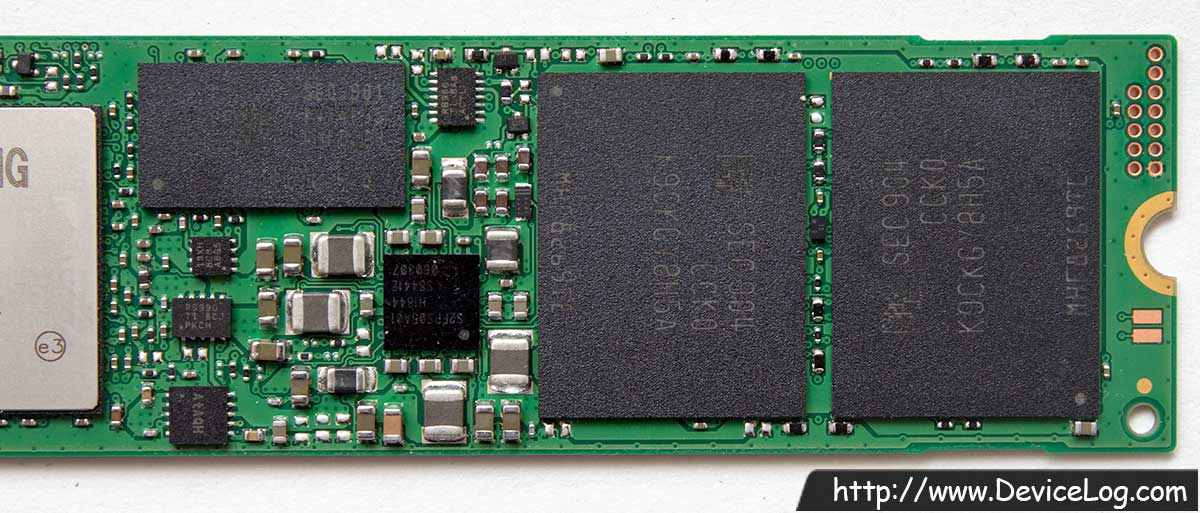

NAND Structure	Samsung V-NAND V4 (TLC 3D NAND, 64-στρώματα)
ΔΡΑΜΙ	○
SLC Caching	○
Performance	– Sequential Read : 3000MB / s – Sequential Write : 1800MB / s – IOPS for read : Μέγιστη. 270k – IOPS for write : Μέγιστη. 420k

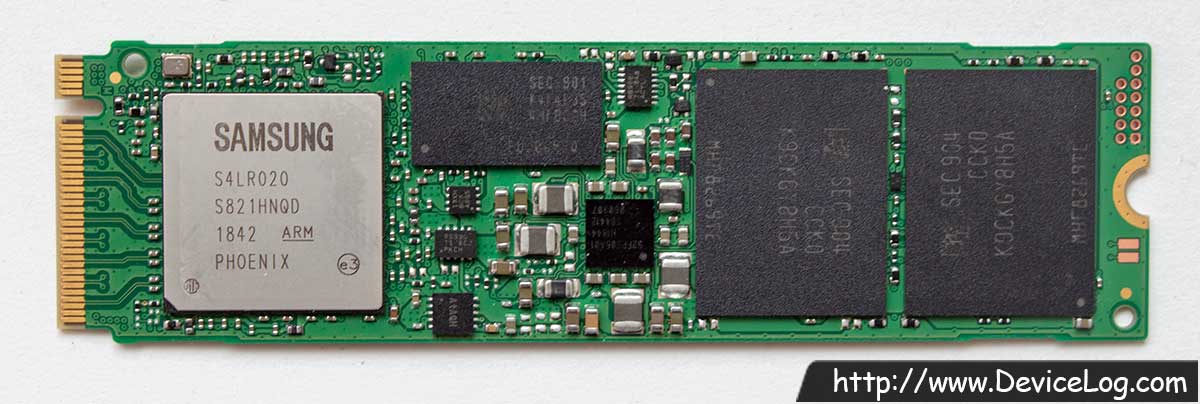

Memory Controller	ARM Phoenix (S4LR020 S821HNQD 1842 ARM Phoenix)
NVMe Heat Sink	not included
UBER	< 1 sector per 10 15 bits read
MTBF	1.5 Million Hours
Temperature	Λειτουργικός : 0°C ~ 70°C Μη λειτουργικό : -40° C ~ 85 ° C
Humidity (χωρίς συμπύκνωση)	Μη λειτουργικό : 5 ~ 95%
Γραμμικό σοκ	Μη λειτουργικό (0.5ms duration with 1/2 sine wave) : 1,500 Gpeak
Δόνηση	Μη λειτουργικό (20 ~ 2,000 Ηζ, Sinusoidal) : 20 Gpeak
Voltage Ripple/Noise (max.)	100mV p-p
Κατανάλωση ενέργειας	– Read (Typ, RMS) : 5.9W – Write (Typ, RMS) : 5.7W – Αδρανής (Typ) : 30mW – L1.2 (Typ) : 5mW
Width	22.00 ± 0.15 mm
Length	80.00 ± 0.15 mm
Υψος	Μέγιστη. 2.38 mm
Βάρος	Μέγιστη. 9.0σολ
